PARAMETERS:

◆1.Dimension: 2300×1700×2070MM

◆2.Cloth speed: 0～50M/MIN

◆3.Power supply: 380V

◆4.Motor power: 0.4KW(Drive motors)

◆5.Useful width: 1450MM

◆6.Maximum coil diameter: 500MM

◆7.Edge accuracy: ±5MM

◆8.Cylinder pressure: more than≤6MPa

Features:

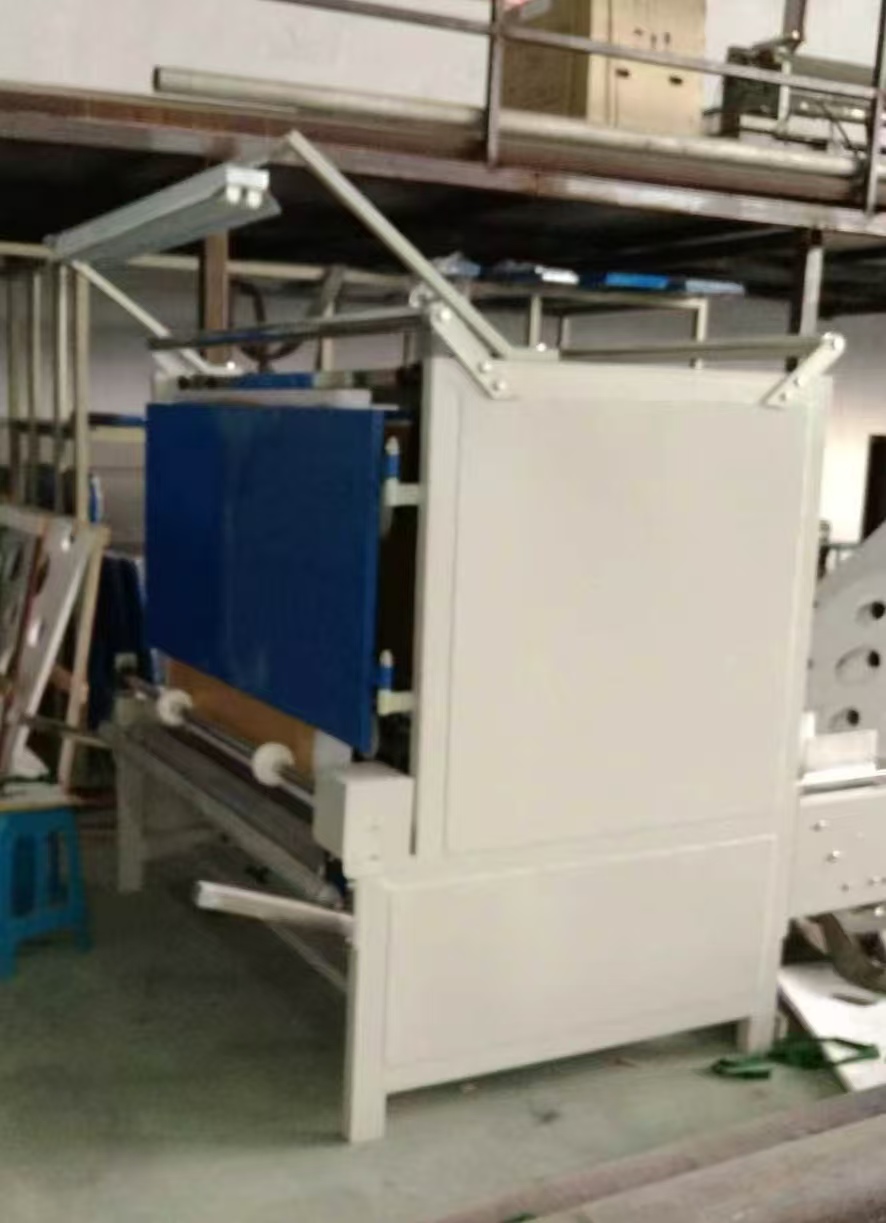

◆1. Suitable for tubular fabric inspection in knitting mills. It enables simultaneous double-side inspection with high efficiency.

◆2. The light box adopts wireless high-frequency control and magnetic levitation design, leaving no clip marks. A foot switch is provided for easy operation.

◆3. Equipped with variable frequency control to freely adjust fabric inspection speed.

◆4. Fabric lantern frames are available in multiple sizes, compatible with fabrics ranging from 18 inches to 48 inches.

◆5. Mirror reflection inspection delivers clear and precise observation.
