PARAMETERS:

◆1.Dimension:4050×2924×2420MM

◆2.Cloth speed: 0～35M/MIN

◆3.Power supply: 380V

◆4.Motor power: 6.75KW

◆5.Useful width: 2500MM

◆6.Stitch: 5～15MM

◆7.Air Pressure Requirements: 6-8KG/CM3

Features:

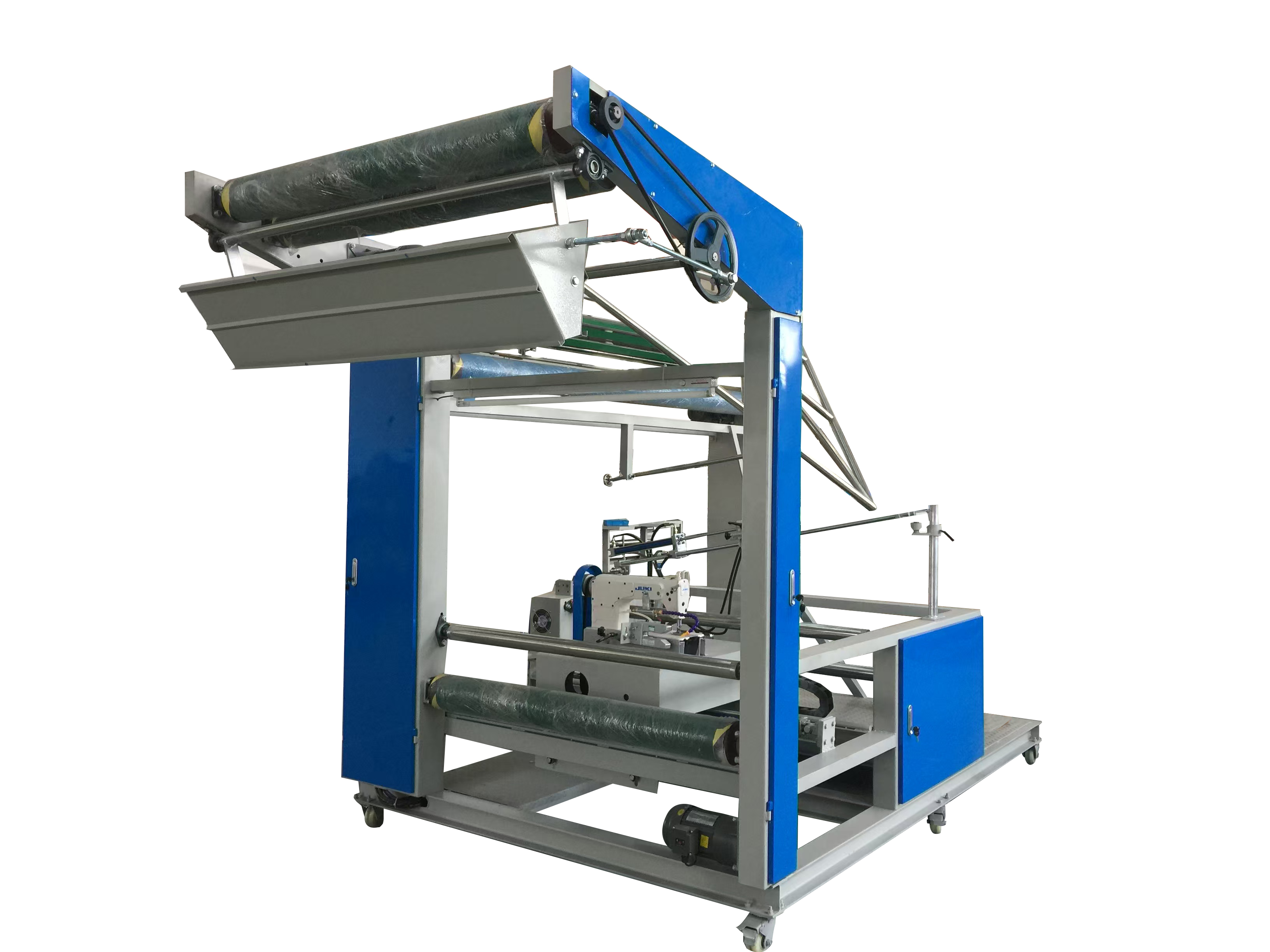

◆1.The machine is specially designed for sewing and pinning the edges of knitted fabrics after folding before dyeing, especially for rubberized elastic fabrics (LYCRA, shearling) after pre-dyeing.

◆2.Infrared electric eye sensor automatic tracking hydraulic edge-to-edge folding.

◆3.Automatic center correction of incoming fabrics, with slit spreading rollers to flatten the fabrics.

◆4.Imported sewing machine head, Japanese KANSAI.

◆5.Frequency conversion, PLC synchronous control, stable operation.

◆6.Slat guiding with one single line head.
