PARAMETERS:

◆1.Dimension: 13785×4750×4750MM

◆2.Cloth speed: 300～500M/MIN

◆3.Power supply: 380V

◆4.Motor power: 135KW

◆5.Operating temperature: Under 120°C

◆6.Material: Stainless steel

◆7.Weight: 12000～14000Kg

◆8.Air compressor pressure: 4-7Kg

Features:

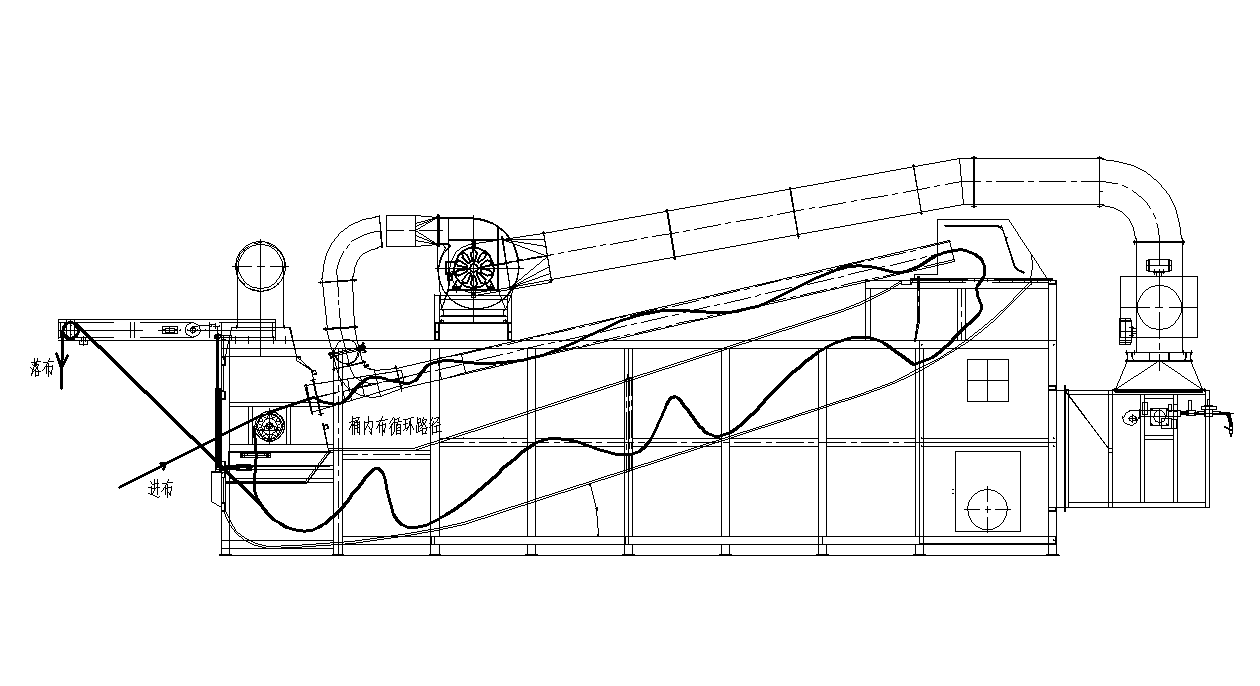

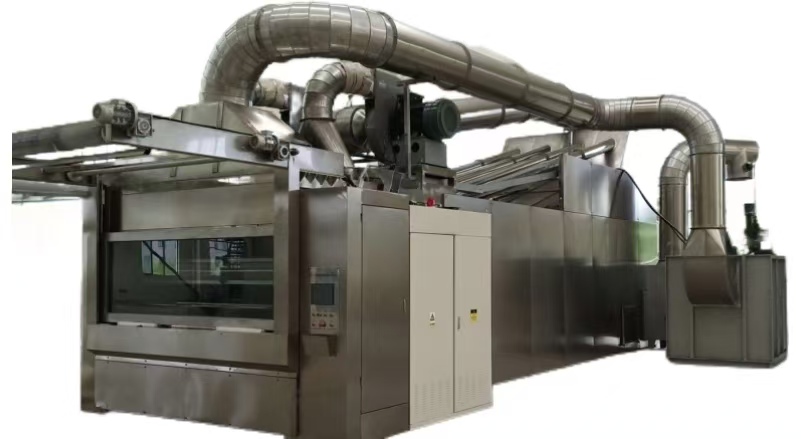

◆1.This is a machine for non-continuous processing of different fabrics (woven and knitted),The machine dries, fumigates, washes and passes the fabric in pre-designed steps.

◆2.Fabric pulling is accomplished by air pressure generated by centrifugal fans.

◆3.During drying, part of the air is recovered and recycled to achieve sufficient energy savings.

◆4.The machine shell has insulated rock wool to save energy and is equipped with a temperature-resistant high-pressure fan.

◆5.The equipment can be supplied with different and changeable air heating systems: a steam heat exchanger or a thermal kerosene heat exchanger.

◆6.The machine is made of stainless steel plate and is equipped with a temperature-resistant high-pressure fan.
